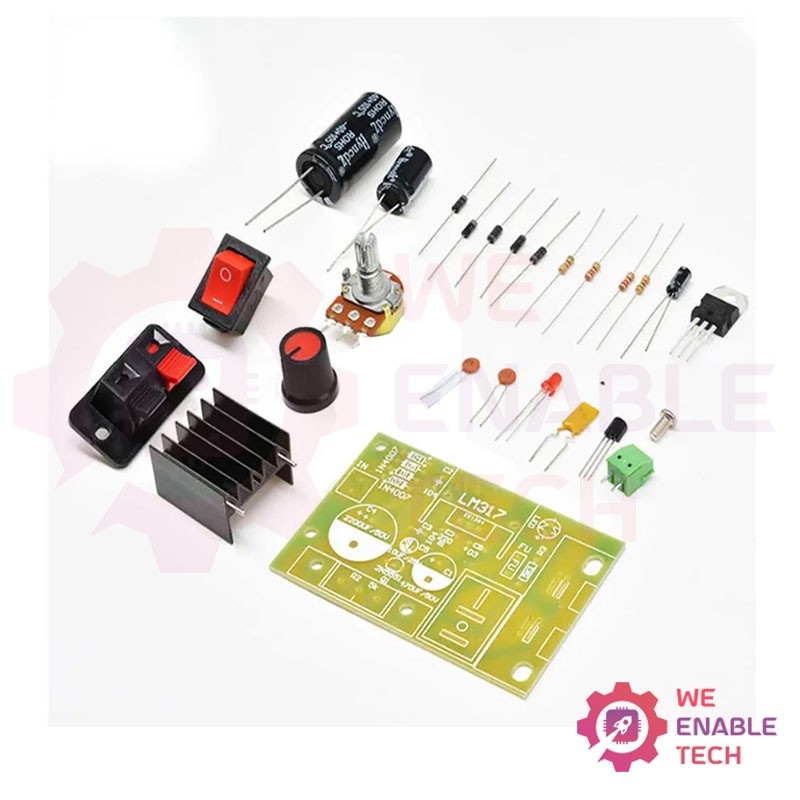

LM317 Voltage Regulator DIY Kit

Looking for a versatile and user-friendly tool to power your electronic gadgets? Introducing our adjustable voltage regulator, the perfect device for anyone starting out in electronics or looking to expand their skills.

With this regulator, you can power a range of small electronic devices that require different voltage levels. Simply connect a DC input voltage between 5V to 35V and adjust the variable resistor (potentiometer) to obtain an output voltage between 1.3V to 30V. It's that easy!

Not only is this regulator easy to use, but it's also a fantastic way to learn about voltage regulation and other fundamental concepts in electronics. The LM317 adjustable linear regulator used in this circuit ensures reliable and efficient performance, so you can focus on your projects without worrying about the technical details.

Whether you're a beginner or a seasoned hobbyist, our adjustable voltage regulator is a must-have tool in your electronics kit. Order now and take the first step towards mastering the art of electronics!

Kit Content

• 1x PCB
• 1 set of electronic components

Schematic

Downloads

DATASHEET (LM317)

Schematic

How Linear regulators work?
