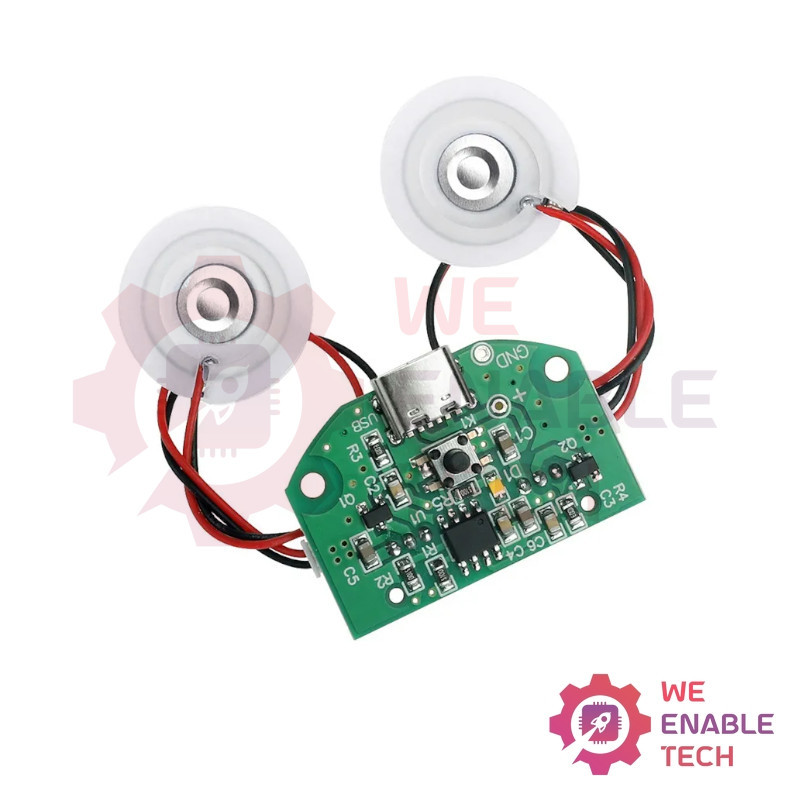

Dual Spray Atomization Module USB Humidifier Driving Circuit Board Ultrasonic DIY Incubation

• Mist is fine and silent
• Fog volume sprays high
• Atomizing plate should be used in accordance with the circuit board frequency to achieve the ideal spray quantity.

Variety of spray modes:

• Continuous spray mode (Press the switch for the first time): LED light is steady on in continuous spray mode, double spray atomization, automatic shutdown protection after spraying for 3 hours.
• Alternate spray mode (Press the switch twice): LED lights will turn on alternately and the sprayer mode will turn on alternately. Spray on one side for 20 seconds, then spray on the other side for 20 seconds, and cycle successively. After spraying for 5 hours, the machine will automatically shut down for protection.
• Intermittent spray mode (Press the switch 3 times): LED lights flashing in intermittent spray mode, spray on one side for 10 seconds, stops spraying for 5 seconds cycle by cycle, automatic shutdown protection after spraying for 12 hours.
• To turn it off: Press the switch four times

• Operating voltage: 5V DC
• Operating current: 300mA
• Power: 2-3W
• Resonant Frequency: 108- 110 kHz
• Applications: Plant moisturizing, Landscape atomization, DIY applications
