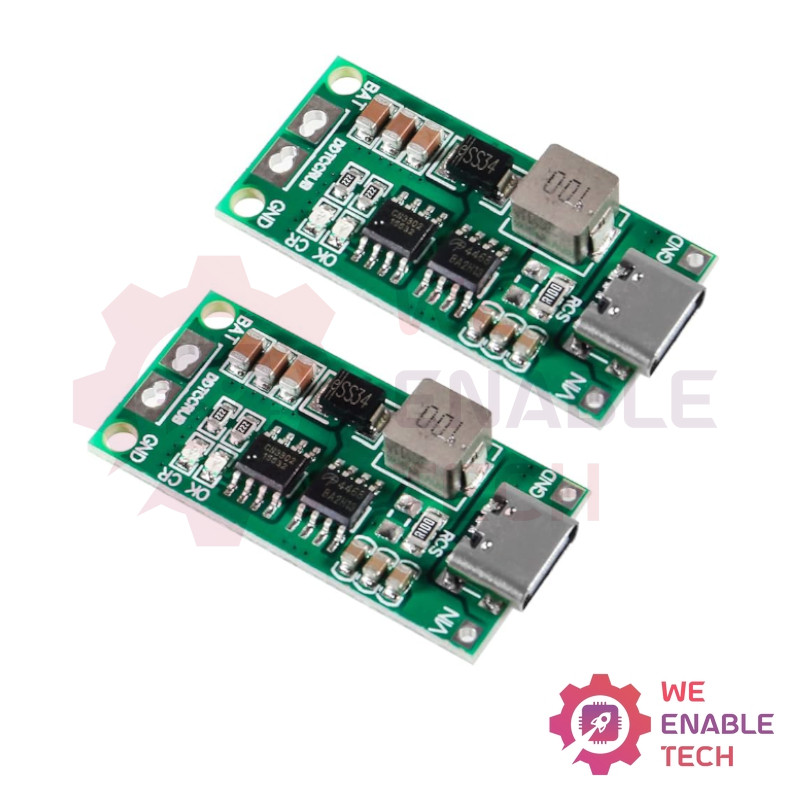

5V / USB-C to 3S 2A Li-ion Charger Module

Model: MOD-BAT-009

Rs 1,760.00
Rs 1,320.00 Save 25%
Tax excluded
Quantity
Last items in stock

redeem
By buying this product you can collect up to 13 loyalty points . Your cart will contain total 13 points that can be converted into a voucher of Rs 13.00 .


  Delivery policy

Delivery via Courier

Technical Specifications:

  • Input voltage: DC 3-6V(Recommend DC 3.7V 5V)
  • Input current: 2A

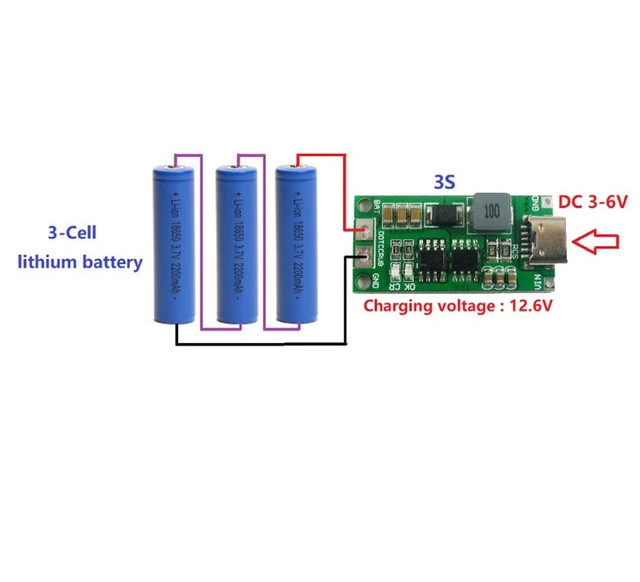

  • Charging voltage: 12.6V
  • Charging current: 0.74A
  • Operating Temperature: -40℃ to +85℃
  • Switching Frequency: up to 1MHz
  • Size: 39mm x 18mm x 6.3mm
  • Weight: 5g

Features:

  • Quasi-CV mode to Compensate for the Voltage Loss on Battery Internal Resistance and Trace Resistance
  • Battery Overvoltage Protection

Led indicator :

  • 'CR' LED is a charge status indicator
  • 'OK' LED is fully charged OR Constant voltage mode
