[XH-M573] TPA3116D2 50W+50W+100W 2.1 Channel digital Power Amplifier

This amplifier board harnesses the cutting-edge Class D amplification technology, renowned for its exceptional efficiency and minimal heat production when compared to conventional Class A/B amplifiers. This translates into a notable reduction in power wastage, rendering it an ideal choice for diverse audio applications. Tailored for 2.1 channel configurations, this board seamlessly drives two stereo speakers (left and right channels) and a subwoofer, delivering a comprehensive audio experience that spans mid and high-range frequencies, as well as robust bass.

Distinguishing itself with remarkable efficiency, this amplifier board is well-suited for portable or power-constrained scenarios, prioritizing minimal power consumption without compromising audio quality. Its feature-rich design incorporates built-in safeguards such as overcurrent protection, thermal shutdown, and short circuit protection, ensuring the security of both the amplifier and connected audio equipment.

The TP3116D2 stands out for its superior audio performance, delivering crystal-clear and potent sound output. With support for a wide range of input voltages (12v - 26v) and a respectable output power of (50w + 50w + 100w), it accommodates various speaker setups. Its integrated design facilitates easy implementation in audio amplifier setups, earning it popularity among DIY audio enthusiasts and professionals alike.

Kit Content

• [XH-M573] TPA3116D2 50W+50W+100W 2.1 Channel digital Power Amplifier

Applications

• Home Audio Systems
• DIY Audio Projects
• Car Audio Systems
• Portable Audio Devices
• Educational Projects

Datasheet

TPA3116D2 DATASHEET

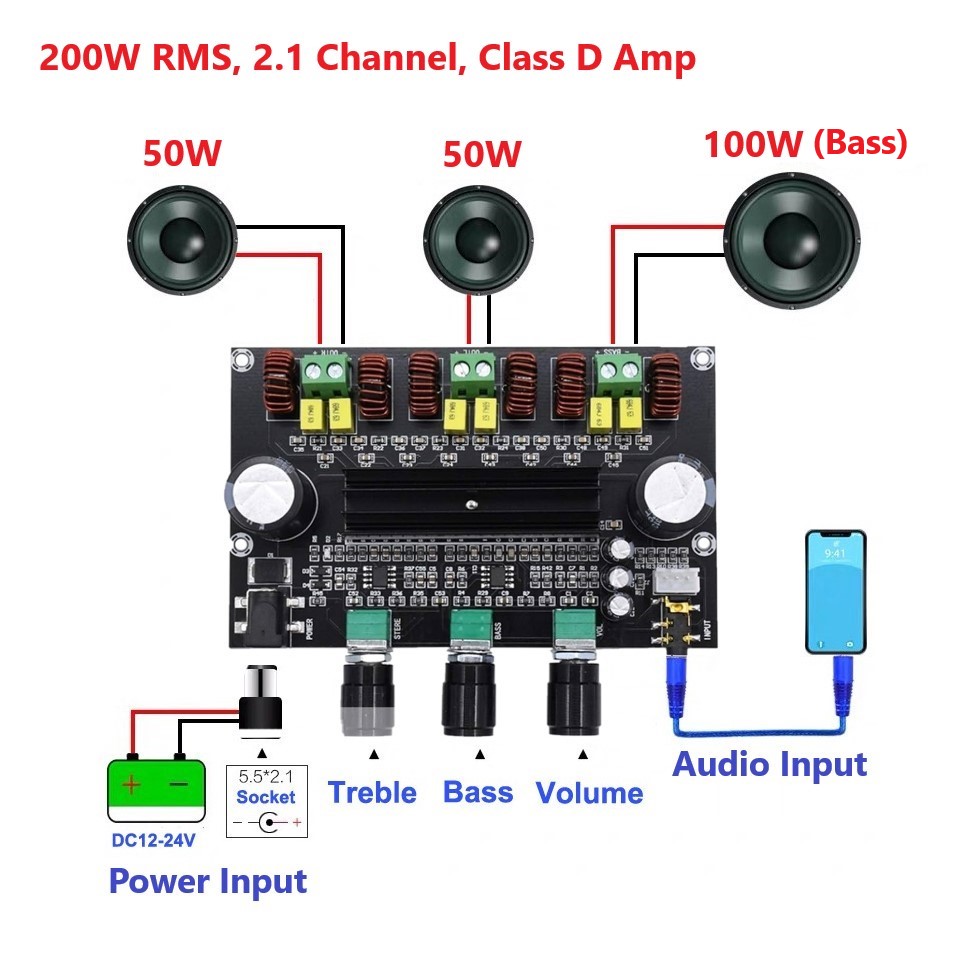

Pinout Diagram
