2S 10A li-ion BMS PCM battery protection board

The 2S Battery Protection Board is purpose-built for 2-cell (2S) lithium-ion battery packs, meticulously overseeing and safeguarding each cell within the battery assembly. Its primary objective is to prevent overcharging and over-discharging of individual battery cells, ensuring they operate within safe voltage limits to avert potential damage.

A significant attribute of 2S protection boards is the integration of a balancing function. This critical feature equalizes the voltage across individual cells within the battery pack, fostering uniform contribution to overall capacity and extending the battery's lifespan. Furthermore, the protection board serves as a barrier against overcurrent scenarios, preempting excessive discharge currents that could lead to overheating or damage to the battery cells.

Engineered to function within a specified voltage range tailored for 2-cell lithium-ion battery setups, these protection boards are pivotal in ensuring compatibility and safe battery operations. Adhering to the recommended charging voltage range, typically around 8.4V for a 2S configuration, is imperative to sustain optimal performance and longevity of the battery pack. Consistent monitoring and compliance with these voltage guidelines significantly contribute to the efficient and safe operation of the lithium-ion battery pack.

Applications

• Communication Equipment
• Industrial Automation
• Smart Home Devices
• Uninterruptible Power Supply (UPS)
• GPS Tracking Devices
• Consumer Electronics

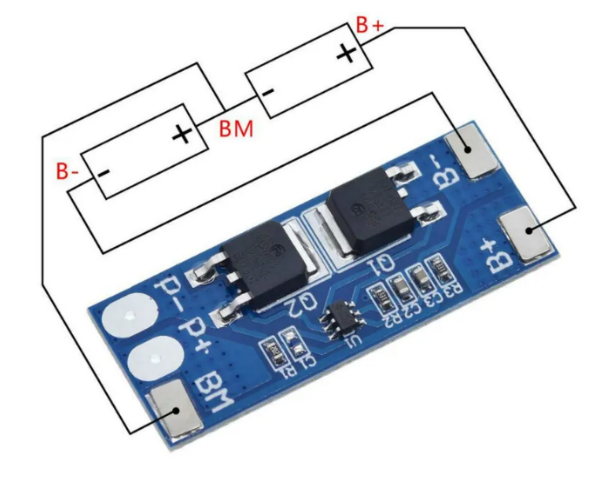

Connection Diagram
