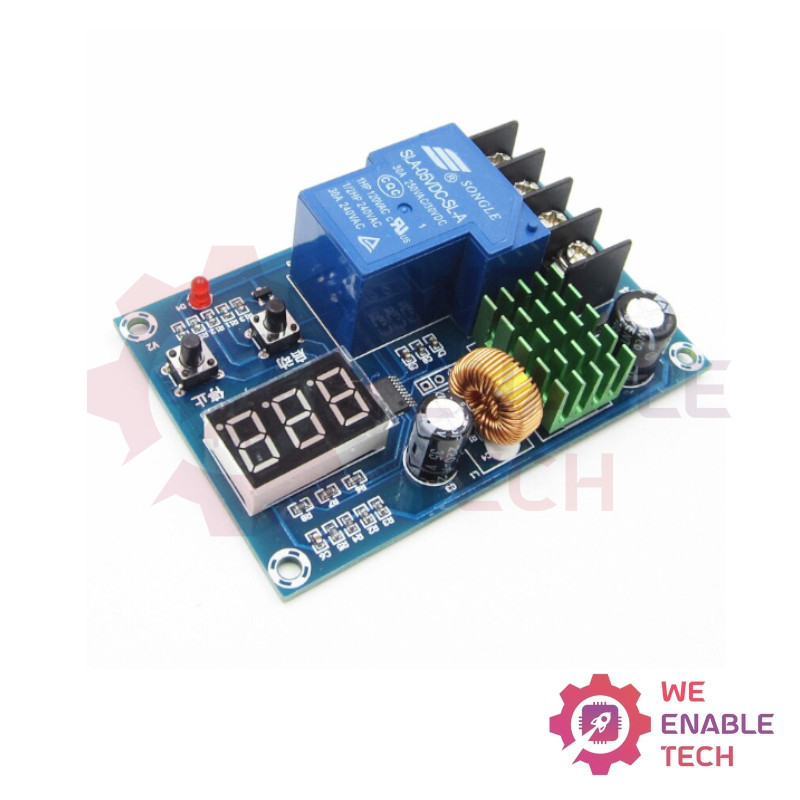

XH M604 Module Battery Charging Control Protection Switch 6-60V
search
  • XH M604 Module Battery Charging Control Protection Switch 6-60V
  • XH M604 Module Battery Charging Control Protection Switch 6-60V

XH M604 Module Battery Charging Control Protection Switch 6-60V

Model: MOD-BAT-012

Rs 1,550.00
Rs 1,162.50 Save 25%
Tax excluded
Quantity
Out-of-Stock. But coming back soon!

redeem
By buying this product you can collect up to 11 loyalty points . Your cart will contain total 11 points that can be converted into a voucher of Rs 11.00 .


  Delivery policy

Delivery via Courier

Technical Specification:

  • Input Voltage: DC 6-60V
  • Display Accuracy:0.1V
  • Control Accuracy:0.1V
  • Output Type: direct output
  • Voltage Tolerance:±0.1V
  • Battery type:6-60V MAX 80V Lead Acid battery
  • Dimension:81*54*18mm

Setup:

Set the start voltage:

  • Short press the Start button to display the start charging voltage.
  • Long press the Start button to go to start voltage set mode. Short press the start and stop buttons when digits are blinking, to adjust the start voltage

Set Stop voltage:

  • Short press the Stop button to display the start charging voltage.
  • Long Press the Stop button to go to stop voltage set mode. Short press the start and stop buttons when digits are blinking, to adjust the stop voltage

Factory reset:

  • Hold down both Start & Stop buttons same time until 888 is displayed


3rd Party
MOD-BAT-012
