230V to 12V 400mA Isolated Switch Power Supply Module AC-DC Buck Step-Down Module

This module is purpose-built to accommodate an input voltage of 230V AC, aligning with the standard voltage for household power outlets. Its primary function is to efficiently step down the higher input voltage to a more manageable 12V DC on the output side. This specific output voltage is well-suited for powering devices that rely on a 12V power source.

With a maximum output current rating of 400mA, the module ensures a reliable power supply for connected devices. It's crucial to select a module with a current rating that either matches or surpasses the requirements of the connected devices.

The module incorporates a rectification stage to convert incoming AC power into pulsating DC. Subsequently, capacitors are employed to smooth this pulsating DC, resulting in a more stable DC output. Integrated voltage regulation circuitry further guarantees a consistent and regulated 12V DC output, even in the presence of fluctuations or variations in the input voltage.

Designed to be compact and lightweight, this module is ideal for seamless integration into a variety of electronic devices and projects.

Applications

• LED Lighting
• DIY Electronics Projects
• Security Systems
• Communication Equipment
• Home Automation
• Outdoor and Recreational Equipment

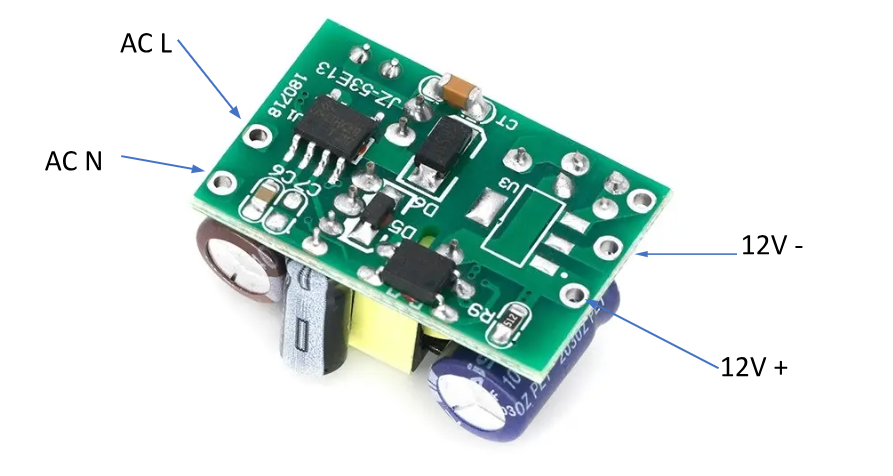

Pinout Diagram
