230V to 5V 700mA Isolated Switch Power Supply Module AC-DC Buck Step-Down Module

This purpose-built module is specifically designed to accommodate an input voltage of 230V AC, aligning seamlessly with the standard voltage for household power outlets. Its primary function is to efficiently step down the higher input voltage to a more manageable 5V DC on the output side, making it well-suited for powering devices that rely on a 5V power source.

With a maximum output current rating of 700mA, the module ensures a reliable power supply for connected devices. It is imperative to select a module with a current rating that either matches or surpasses the requirements of the connected devices.

The module incorporates a rectification stage to convert incoming AC power into pulsating DC. Subsequently, capacitors are employed to smooth this pulsating DC, resulting in a more stable DC output. Integrated voltage regulation circuitry further guarantees a consistent and regulated 5V DC output, even in the presence of fluctuations or variations in the input voltage.

Designed with compactness and lightweight features in mind, this module is ideal for seamless integration into a variety of electronic devices and projects, offering both efficiency and reliability in power delivery.

Applications

• LED Lighting
• DIY Electronics Projects
• Security Systems
• Communication Equipment
• Home Automation
• Outdoor and Recreational Equipment

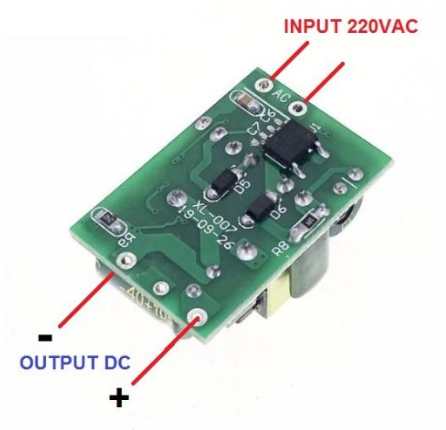

Pinout Diagram
