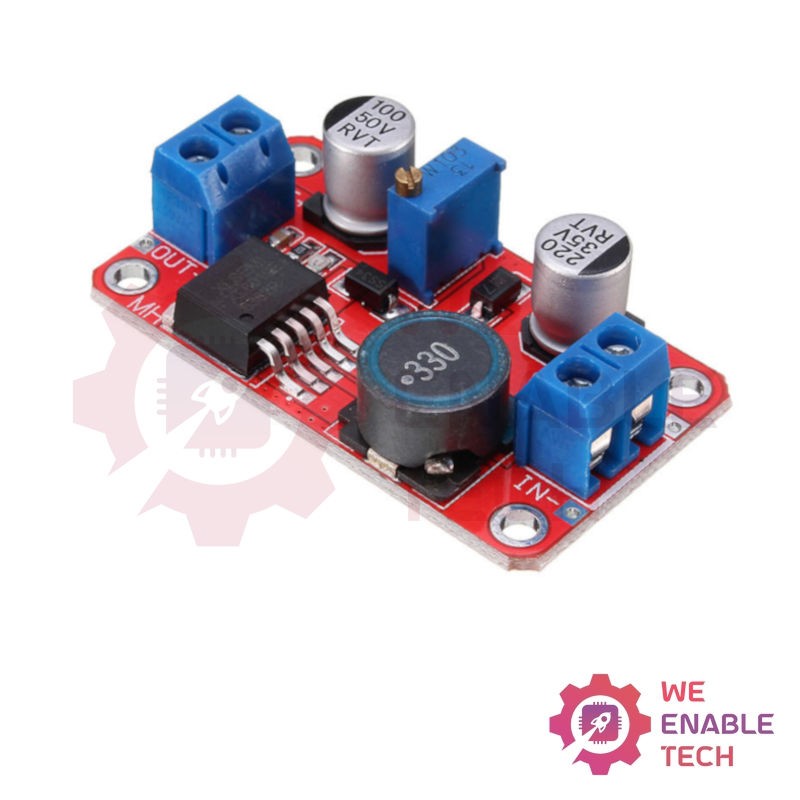

XL6019 5A Step Up / Boost converter module

The XL6019 stands out as a popular and versatile Boost converter module, finding application in electronic projects and power supply designs where elevating a lower input voltage to a regulated, higher output voltage is essential. Engineered for efficiency, the XL6019 module boasts an impressive 94% power conversion capability, effectively minimizing energy losses.

Functioning as the main IC, the XL6019 excels in stepping up input voltages to higher levels, embodying a flexible boost converter design that facilitates adjustable output voltages. For a deeper understanding of its capabilities, you are encouraged to see the accompanying datasheet provided with this description.

A standout feature of the XL6019 is its ability to offer an adjustable output voltage ranging from 5V to 40V. This adaptability is made possible through the integration of a potentiometer, allowing you precise control over the desired output voltage within a specified range. It is crucial to note that the module is engineered to operate within a defined input voltage range of 3V to 35V, emphasizing the importance of aligning the input voltage with these parameters for optimal and safe functionality.

With a maximum output current rating of 5A, the XL6019 module delivers substantial power to meet diverse application requirements. Consideration of this specification is paramount, aligning the module's capabilities with the specific power needs of your application. Additionally, the module incorporates critical protection features, including over-current protection and over-temperature protection, enhancing its reliability and fortifying against potential damage in challenging operational conditions.

Applications

• Battery Powered devices.
• LED Drivers.
• As a Power supply for Embedded Systems
• RFID readers

Datasheet

XL6019 DATASHEET
