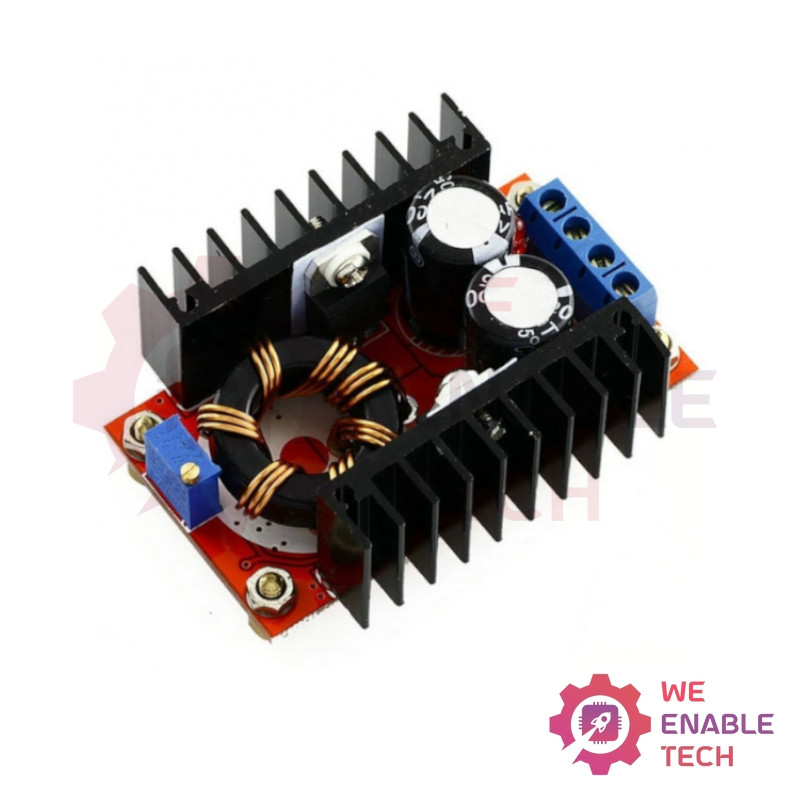

150W Adjustable DC-DC Step Up (Boost) Converter 10-32V to 12-35V 6A

Model: MOD-PWR-004

Rs 1,090.00
Rs 817.50 Save 25%
Tax excluded
Quantity

redeem
By buying this product you can collect up to 8 loyalty points . Your cart will contain total 8 points that can be converted into a voucher of Rs 8.00 .


  Delivery policy

Delivery via Courier

Technical Specification:

  • Input voltage: DC 10-30 V
  • Output Voltage: DC 12-35 V(Adjustable)
  • Output Current : 10A(MAX, adjustable)
  • Input current: 16A (MAX)
  • Output Power: natural cooling 100W (MAX), Active cooling 150W (MAX) real power.
  • Conversion efficiency: 94% (Input @24V , Output @35V/2A)
  • Output ripple : 350mV (input @12V , Output @24V/3A )
  • Working Temperature: industrial (- 40 ° c to +85 °c)
  • No-load current: 20mA typical
  • Dynamic response speed: 300uS 5%
  • Size: 65*47*23.5 mm

Warning:

  • The temperature of the step-up Module can not exceed 80 °c. Please use adequate cooling.
  • No Short circuit protection. Do NOT Short Circuit output  (Can use a fuse or protection circuit at input)
  • No Input Reverse protection. Do NOT  reverse input polarity (Can use a diode at input to prevent reverse polarity damage)

Note:

  • When adjusting the potentiometer, please use a multimeter to monitor the voltage
  • Rotating Clockwise can raise the voltage while rotating counterclockwise could lower the voltage
  • When the module output voltage can not be adjusted ( For example, the output voltage is always equal to the input voltage ) Please adjust the potentiometer counter-clockwise 20 laps (20 turns) or more until it works.
