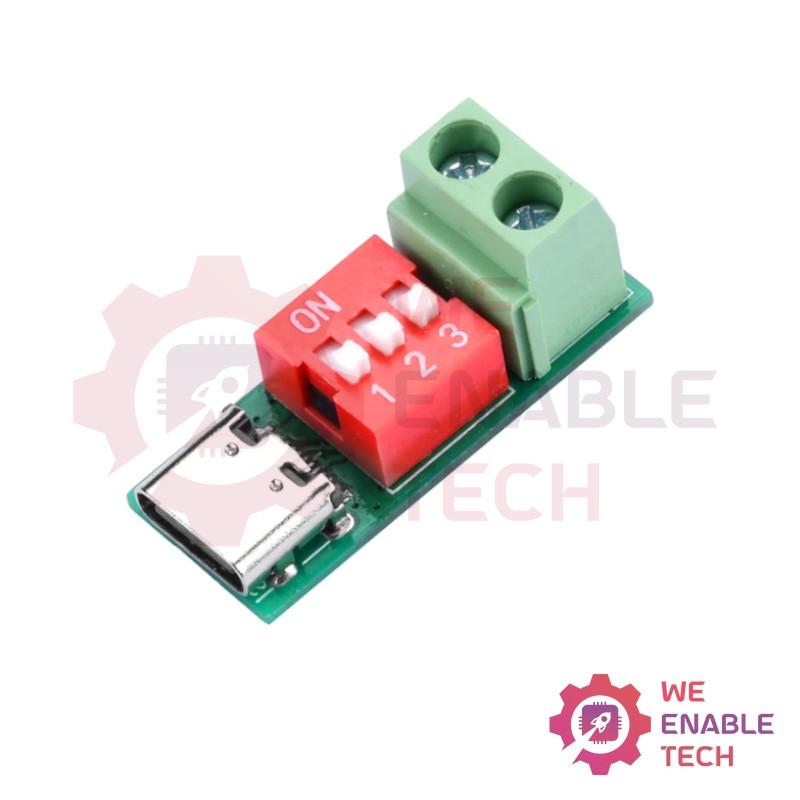

USB Type-C PD Decoy QC PD 3.0/2.0 DC 1.2 Fast Charging Test Board Adjustable Voltage 5-20V with Dial Code
search
  • USB Type-C PD Decoy QC PD 3.0/2.0 DC 1.2 Fast Charging Test Board Adjustable Voltage 5-20V with Dial Code
  • USB Type-C PD Decoy QC PD 3.0/2.0 DC 1.2 Fast Charging Test Board Adjustable Voltage 5-20V with Dial Code
  • USB Type-C PD Decoy QC PD 3.0/2.0 DC 1.2 Fast Charging Test Board Adjustable Voltage 5-20V with Dial Code

USB Type-C PD Decoy QC PD 3.0/2.0 DC 1.2 Fast Charging Test Board Adjustable Voltage 5-20V with Dial Code

Model: MOD-PWR-029

Rs 590.00
Rs 442.50 Save 25%
Tax excluded

Supports boost fast charging protocols such as PD3.0/2.0 and BC 1.2, with a maximum power of 10 watts.

Quantity

redeem
By buying this product you can collect up to 4 loyalty points . Your cart will contain total 4 points that can be converted into a voucher of Rs 4.00 .


  Delivery policy

Delivery via Courier

  • The PD decoy supports boost fast charging protocols such as PD3.0/2.0 and BC 1.2, with a maximum power of 10 watts.
  • Over temperature and over voltage protection.
  • Forward and reverse insertion detection and automatic switching
  • Interface: Supports USB type- C PD
  • Supports input voltages ranging from 4V to 22V.
  • The voltage can be adjusted through a dial switch, with an output voltage of up to 20V.
  • Module size: 28x 11x 12 mm

Instructions for use:

Dial Switch 1 Dial Switch 2 Dial Switch 3 Request Voltage
1 - - 5V
0 0 0 9V
0 0 1 12V
0 1 1 15V
0 1 0 20V

Applicable People:

  • College Students
  • Engineers
  • Technicians
  • Factory Personnel DIY
  • Electronic Enthusiasts

3rd Party
MOD-PWR-029
8 Items

Data sheet

Input Voltage
Supports 4V- 22V
Output Voltage
Up to 20V
