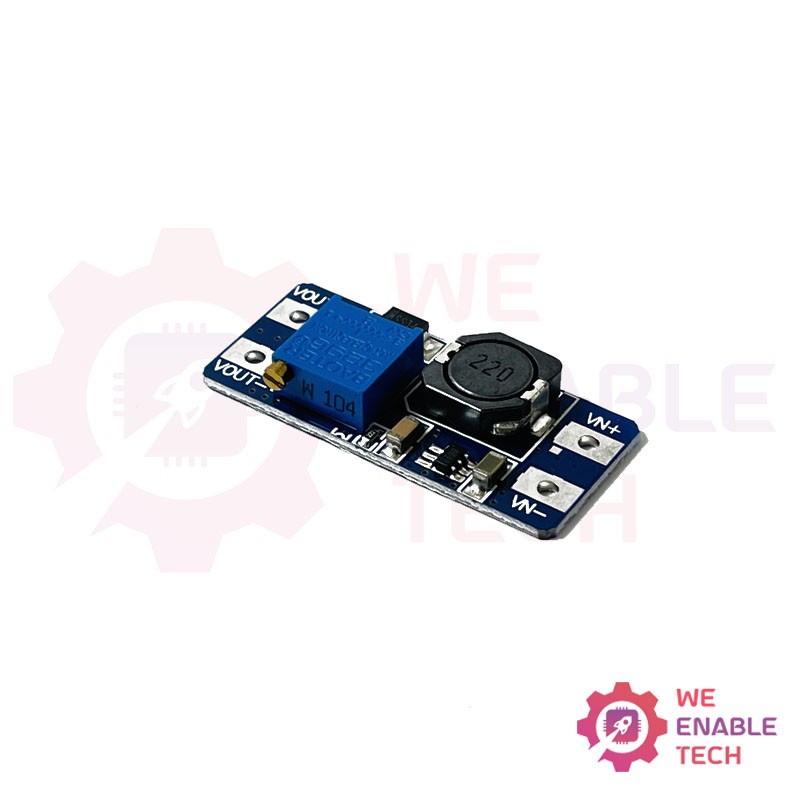

MT3608 Step Up / Boost Converter Module
search
  • MT3608 Step Up / Boost Converter Module
  • MT3608 Step Up / Boost Converter Module

MT3608 Step Up / Boost Converter Module

Model: MOD-PWR-001

Rs 240.00
Rs 180.00 Save 25%
Tax excluded

2A low cost boost converter with wider input voltage from 2V to 24V and built in NMOS with max 2A output current.

Applicable for DC-DC voltage step up conversion.

කාර්යක්ෂමව අඩු DC වෝල්ටීයතාවයකින් ඩැඩි DC වෝල්ටීයතාවයක් ලබාගැනීම සඳහා.

DC-DC மின்னழுத்த படி-அப் மாற்றத்திற்கு பொருந்தும்.

Quantity

redeem
By buying this product you can collect up to 1 loyalty point . Your cart will contain total 1 point that can be converted into a voucher of Rs 1.00 .


  Delivery policy

Delivery via Courier

MT3608 Step up converter module is a low cost affordable solution for wide range of applications where voltage boosting is required. Due it its higher switching frequency of 1.2MHz, this module can provide an efficiency up to 97%.

It has a wide input voltage along with low input voltage threshold of 2V, which makes this an ideal solution for many battery powered applications.

Typical Applications

 + Battery-Powered Equipment

 + Set-Top Boxed

 + LCD Bias Supply

 + DSL and Cable Modems and Routers

 + Networking cards powered from PCI or PCI express slots

Note:

Output current of the module can be derived using the equation below.

Here  ƞ is the efficiency. Please select this value from the efficiency curve given in the datasheet for your input voltage and current.

Datasheet

MT3608 Datasheet

Basics of Boost Converter



MOD-PWR-001
50 Items

Data sheet

Input Voltage
2V - 24V
Output Voltage
Up to 28V [Adjustable]
Output Current
2A Max
Efficiency
Up to 97%
Frequency
1.2MHz
