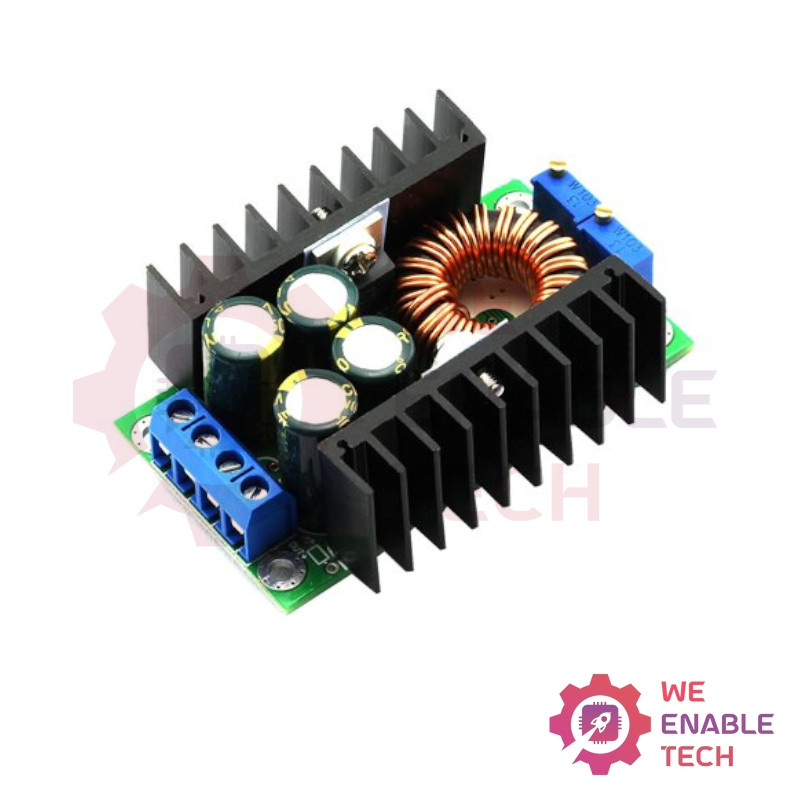

XL4016 8A Buck Converter with Constant Current (CC) and Constant Voltage (CV) Adjustment

Model: MOD-PWR-011

Rs 1,620.00
Rs 1,215.00 Save 25%
Tax excluded

XL4016 CC-CV DC-DC Buck/Step-Down Converter, adjustable +0.8 to 28vdc output, 8A.

Quantity

redeem
By buying this product you can collect up to 12 loyalty points . Your cart will contain total 12 points that can be converted into a voucher of Rs 12.00 .


  Delivery policy

Delivery via Courier

Ideal for battery-operated projects requiring a higher current-regulated power supply.

These modules use the XL4016 DC-DC converter IC, and applications include LED drivers, battery chargers, or a regulated power supply.



Technical Specifications:

  • Module Properties: non-isolated step-down constant current, constant voltage module (CC-CV)
  • Input Voltage: DC 7-32V
  • Output Voltage: DC 0.8-28V continuously adjustable
  • Output Current: 8A maximum with heat sink
  • Constant Current Range: 0.2-8A
  • Efficiency: Up to 95% ( when output voltage is set high )
  • Protection: Short circuit current limiting, thermal shutdown
  • Load Regulation: +/- 1%
  • Voltage Regulation: +/- 1%
  • Temperature: 40 to +85 deg C ( output power less than 10Watts )
  • Size: 65 x 36 x 23 mm
  • Weight: 65.5 g
